R290-7 Hyundai Hydraulic Pump 31N8-10010 K3V140DT Hyundai Excavator Parts
| Description | Hyundai Hydraulic Pump, K3V140DT Piston Pump, R290-7 Hydraulic Pump |
| Application | Hyundai R290-7 Excavator |
| Model | R290-7, EC290B, DH300-5/7 |
| Part No. | 31N8-10010, 31N810010, K3V140DT |
| Quality | 100% new pump, China aftermarket or Korea available |
| Weight | 180-190kgs |
| Packing | Pack into wooden case |
| MOQ | 1PC |
| Lead time | About 1-3 working days |
| Payment | TT, Western union, Paypal, Paysend, RMB |
| Warranty | 6 Months |
| Shipping Port | Huangpu Old Port, Shenzhen Yantian,Guangzhou |
Tips: To ensure client buy correct parts from China, parts details like model, part no. pump code, photo or size are required.
more details more good, all these infos are aim to supply you CORRECT parts to fit well with machine.

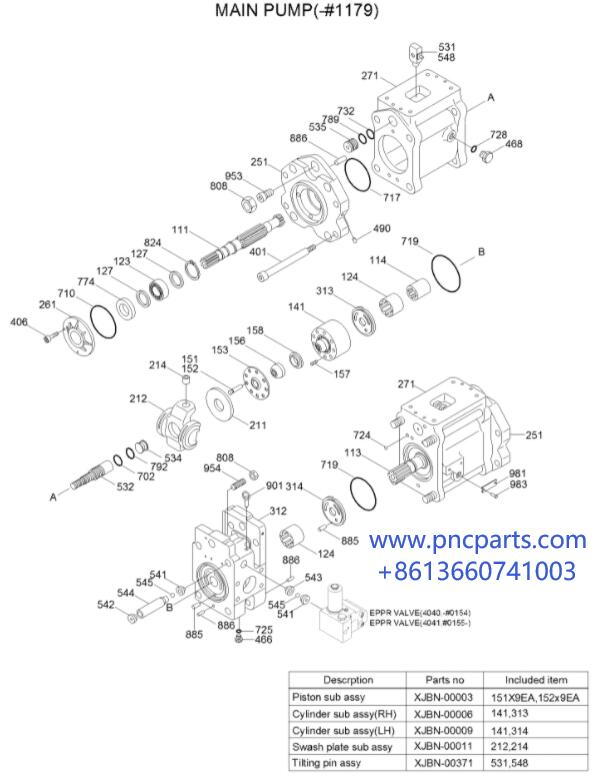

Parts on group R290-7 hydraulic pump:
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31N8-10010 | [1] | MAIN PUMP | |
| *. | 31N8-10050 | [1] | MAIN PUMP | |
| *-1. | K3V140DT-1CER | [1] | MAIN PUMP UNIT | |
| *-1. | K3V140DT-1CER-B | [1] | MAIN PUMP UNIT | |
| 111. | XJBN-00015 | [1] | SHAFT-DRIVE(F) | |
| 113. | XJBN-00153 | [1] | SHAFT-DRIVE(R) | |
| 114. | XJBN-00367 | [1] | COUPLING-SPLINE | |
| 123. | XJBN-00017 | [2] | BEARING-ROLLER | |
| 124. | XJBN-00018 | [2] | BEARING-NEEDLE | |
| 127. | XJBN-00019 | [3] | SPACER-BEARING | |
| S141. | XJBN-00007 | [2] | BLOCK-CYLINDER | |
| NS151. | XJBN-00004 | [18] | PISTON | |
| NS152. | XJBN-00748 | [18] | SHOE | |
| 153. | XJBN-00020 | [2] | PLATE-SET | |
| 156. | XJBN-00021 | [2] | BUSHING-SPHERICAL | |
| 157. | XJBN-00022 | [18] | SPRING-CYLINDER | |
| 158. | XJBN-00368 | [2] | SPACER | |
| 211. | XJBN-00023 | [2] | PLATE-SHOE | |
| S212. | XJBN-00012 | [2] | PLATE-SWASH | |
| S214. | XJBN-00013 | [2] | BUSHING-TILTING | |
| 251. | XJBN-00024 | [2] | SUPPORT | |
| 261. | XJBN-00025 | [1] | COVER(FR)-SEAL | |
| 271. | XJBN-00026 | [2] | CASING-PUMP | |
| 312. | XJBN-00027 | [1] | BLOCK-VALVE | |
| S313. | XJBN-00008 | [1] | PLATE(R)-VALVE | |
| S314. | XJBN-00010 | [1] | PLATE(L)-VALVE | |
| 401. | XJBN-00028 | [8] | SCREW | |
| 406. | XJBN-00355 | [4] | SCREW-HEX SOC HD | |
| 466. | XJBN-00356 | [2] | PLUG | |
| 468. | XJBN-00357 | [4] | PLUG | |
| 490. | XJBN-00032 | [29] | PLUG | |
| NS531. | XJBN-00369 | [2] | PIN-TILTING | |
| 532. | XJBN-00033 | [2] | PISTON-SERVO | |
| 534. | XJBN-00034 | [2] | STOPPER(L) | |
| 535. | XJBN-00035 | [2] | STOPPER(S) | |
| N541. | XJBN-00036 | [4] | SEAT | |
| N543. | XJBN-00037 | [2] | STOPPER 1 | |
| N544. | XJBN-00039 | [2] | STOPPER 2 | |
| 545. | XJBN-00359 | [4] | BALL-STEEL | |
| NS548. | XJBN-00360 | [2] | PIN-FEED BACK | |
| 702. | XJBN-00040 | [2] | O-RING | |
| 710. | XJBN-00041 | [1] | O-RING | |
| 717. | XJBN-00042 | [2] | O-RING | |
| 719. | XJBN-00043 | [2] | O-RING | |
| 724. | XJBN-00361 | [16] | O-RING | |
| 725. | XJBN-00362 | [4] | O-RING | |
| 728. | XJBN-00363 | [3] | O-RING | |
| 732. | XJBN-00047 | [2] | O-RING | |
| 774. | XJBN-00906 | [1] | SEAL-OIL | |
| 789. | XJBN-00049 | [2] | RING-BACK UP | |
| 792. | XJBN-00050 | [2] | RING-BACK UP | |
| 808. | XJBN-00364 | [4] | NUT | |
| 824. | XJBN-00052 | [2] | RING-SNAP | |
| 885. | XJBN-00053 | [2] | PIN-2 | |
| 886. | XJBN-00365 | [4] | PIN-SPRING | |
| 901. | XJBN-00055 | [2] | BOLT-EYE | |
| 953. | XJBN-00056 | [2] | SCREW-SET | |
| 954. | XJBN-00057 | [2] | SCREW-SET | |
| 981. | XJBN-00156 | [1] | NAME PLATE | |
| 983. | XJBN-00341 | [2] | PIN | |
| *-2. | XJBN-00001 | [1] | REGULATOR | |
| *-3. | XJBN-00002 | [1] | GEAR PUMP | |
| *-3. | XJBN-00520 | [1] | GEAR PUMP | |
| *-3. | XJBN-00847 | [1] | GEAR PUMP | |
| *-4. | XJBN-00014 | [1] | EPPR VALVE ASSY | |
| *-4. | XJBN-00382 | [1] | EPPR VALVE ASSY | |
| 011. | XJBN-00003 | [2] | PISTON SUB ASSY | |
| 013. | XJBN-00006 | [1] | CYLINDER ASSY-RH | |
| 014. | XJBN-00009 | [1] | CYLINDER ASSY-LH | |
| 030. | XJBN-00011 | [2] | SWASH PLATE ASSY | |
| 530. | XJBN-00371 | [2] | TILTING PIN ASSY | |
| N. | @ | [1] | NOT INDIVIDUALLY SUPPLIED | |
