723-40-50200 Main Relief Valve Shantui PC200-6 6D102 Komatsu Relief Valve Ass'y
| Description | PC200-6 Relief Valve, PC240-6 Main Relief Valve, Komatsu Relief Valve Ass'y |
| Application | Track excavator |
| Model | PC200-6, PC240-6 |
| Part No. | 723-40-50201, 723-40-50200 |
| Quality | OEM quality, China made |
| Weight | 0.3-0.5kgs |
| Packing | Carton box |
| MOQ | 1PC |
| Lead time | About 1-3 working days |
| Payment | TT, Western union, Paypal, Paysend, RMB |
| Warranty | 3 Months |
| Shipping Port | Huangpu Old Port, Shenzhen Yantian,Guangzhou |
Compatible equipment models: 723-40-50200:
EXCAVATORS PC200 PC210 PC220 PC230 PC240 PC250 Komatsu

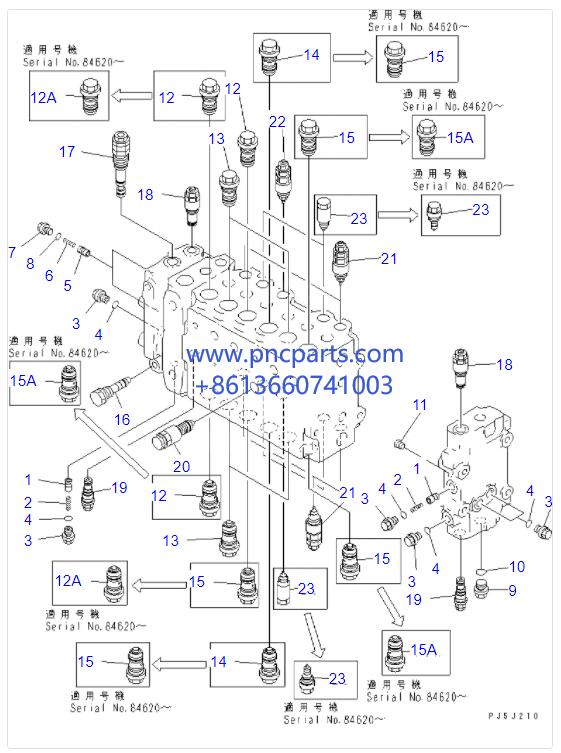

Parts on group PC200-6 main valve:
| Pos. | Part No | Qty | Parts name | Comments |
| | 723-47-10500 | [1] | VALVE ASS'Y Komatsu | 202 kg. |
| | ["SN: 84620-86929"] analogs:["7234710502"] |$4. |
| | 723-47-10107 | [1] | VALVE ASS'Y Komatsu | 186 kg. |
| | ["SN: 83720-84619"] |$5. |
| | 723-47-10105 | [1] | VALVE ASS'Y Komatsu | 186 kg. |
| | ["SN: 82274-83719"] analogs:["7234710107"] |$6. |
| | 723-47-10103 | [1] | VALVE ASS'Y Komatsu | 186 kg. |
| | ["SN: 80001-82273"] analogs:["7234710107"] |$7. |
| | | [-1] | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-11A0. | |
| | |$$5. |
| 1. | 723-46-15150 | [2] | VALVE Komatsu | 0.021 kg. |
| | ["SN: 80001-@"] |
| 2. | 723-46-14150 | [2] | SPRING Komatsu | 0.005 kg. |
| | ["SN: 80001-@"] |
| 3. | 723-46-15180 | [6] | PLUG Komatsu China | |
| | ["SN: 80001-@"] |
| 4. | 07002-11823 | [6] | O-RING Komatsu | 0.36 kg. |
| | ["SN: 80001-@"] analogs:["0700201823"] |
| 5. | 723-46-15190 | [2] | VALVE Komatsu | 0.005 kg. |
| | ["SN: 80001-@"] |
| 6. | 723-46-14140 | [2] | SPRING Komatsu | 0.005 kg. |
| | ["SN: 80001-@"] |
| 7. | 708-8E-16160 | [2] | PLUG Komatsu | 0.01 kg. |
| | ["SN: 80001-@"] |
| 8. | 07002-11023 | [2] | O-RING Komatsu China | 0.025 kg. |
| | ["SN: 80001-@"] analogs:["0700201023"] |
| 9. | 709-74-91860 | [1] | PLUG Komatsu China | |
| | ["SN: 80001-@"] |
| 10. | 07002-12434 | [1] | O-RING Komatsu China | 0.01 kg. |
| | ["SN: 80001-@"] analogs:["0700202434", "0700213434"] |
| 12. | 723-46-40100 | [1] | VALVE ASS'Y Komatsu | 0.5 kg. |
| | ["SN: 84620-@"] |
| 12A. | 723-46-46101 | [2] | VALVE ASS'Y Komatsu | 0.5 kg. |
| | ["SN: 84620-@"] |
| 13. | 723-46-40300 | [4] | VALVE ASS'Y Komatsu | 0.48 kg. |
| | ["SN: 80001-@"] |
| 14. | 723-46-40200 | [2] | VALVE ASS'Y Komatsu China | |
| | ["SN: 82274-84619"] analogs:["7234640400"] |
| 14. | 723-46-40400 | [2] | VALVE ASS'Y Komatsu China | |
| | ["SN: 80001-82273"] analogs:["7234640200"] |
| 15. | 723-46-41100 | [2] | VALVE ASS'Y Komatsu | 0.49 kg. |
| | ["SN: 84620-@"] |
| 15A. | 723-46-45100 | [3] | VALVE ASS'Y Komatsu | 0.49 kg. |
| | ["SN: 84620-@"] |
| 16. | 723-46-15100 | [1] | PLUG ASS'Y Komatsu China | |
| | ["SN: 80001-@"] |
| 17. | 723-40-50100 | [1] | VALVE ASS'Y,RELIEF Komatsu OEM | 0.837 kg. |
| | ["SN: 80001-@"] |
| 18. | 723-40-50200 | [2] | VALVE ASS'Y,RELIEF Komatsu | 0.35 kg. |
| | ["SN: 80001-@"] analogs:["7234050201"] |
| 19. | 723-40-56100 | [2] | VALVE ASS'Y,UNLOAD Komatsu | 0.198 kg. |
| | ["SN: 80001-@"] |
| 20. | 723-40-60100 | [1] | VALVE ASS'Y Komatsu OEM | 0.48 kg. |
| | ["SN: 80001-@"] analogs:["7234060101"] |
| 21. | 709-70-74302 | [4] | VALVE ASS'Y,SUCTION AND SAFETY Komatsu | 0.42 kg. |
| | ["SN: 80001-@"] |
| 22. | 709-70-74203 | [1] | VALVE ASS'Y,SUCTION AND SAFETY Komatsu | 0.42 kg. |
| | ["SN: 80001-@"] |
| 23. | 723-40-85100 | [5] | VALVE ASS'Y,SUCTION Komatsu | 0.19 kg. |
| | ["SN: 84620-@"] |
| 23. | 709-20-81201 | [5] | VALVE ASS'Y,SUCTION Komatsu China | |
| | ["SN: 80001-84619"] |
